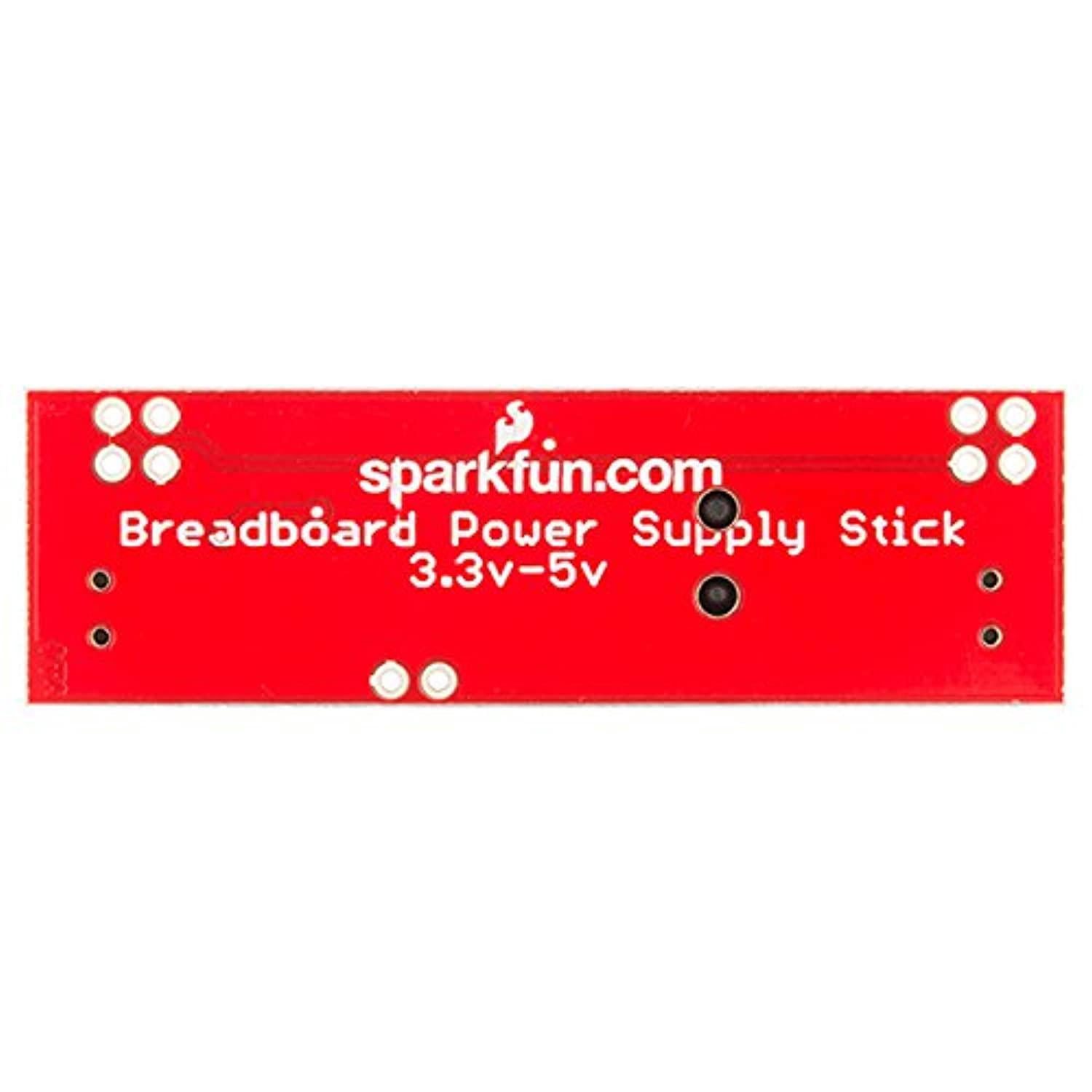

sparkfun breadboard power supply stick - 5v/3.3v

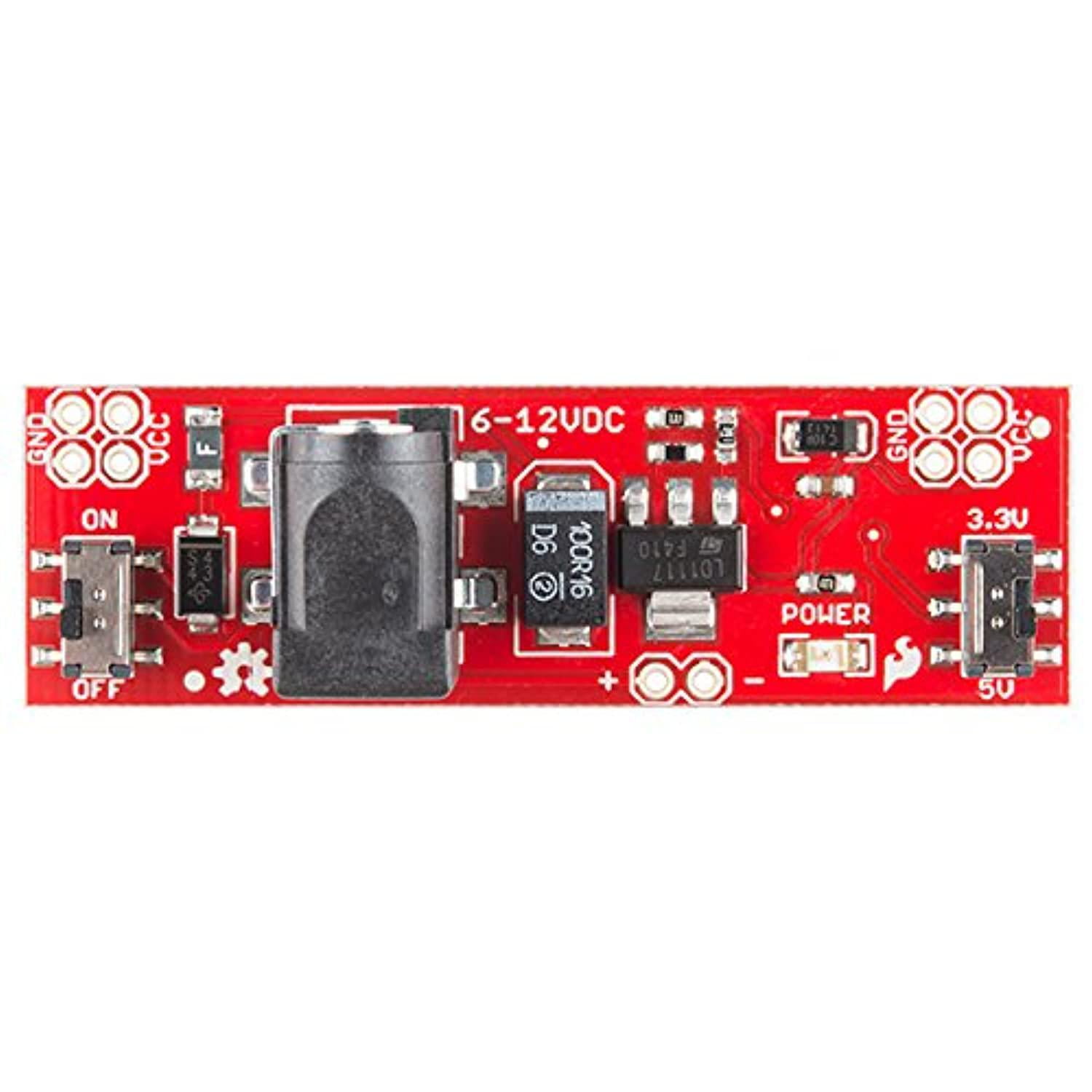

Description: This is a very simple board that takes a 6-12V input voltage and outputs a selectable 5V or 3.3V regulated voltage. All headers are 0.1" pitch for simple insertion into a breadboard.Input power can be supplied to either the DC barrel jack or the two pin header labeled + and -. Output power is supplied to the pins labeled GND and VCC. Board has both an On/Off switch and a voltage select switch (3.3V/5V).The two sets of four GND and VCC holes are spaced such that when connected to ourBasic Breadboardboth power busses will be powered.Note:Headers are not supplied. You will need to supply your own headers to connect this board to a breadboard. Check below for some breakaway header strips.Features:6-12V input voltage via barrel jack or 2-pin header3.3V or 5V regulated output voltage800mA Operating CurrentON/OFF switchOutput voltage select switchPower status LEDPTC fuse protected power5.5x2.1mm center positive barrel jack2.15x0.65"

• This is a very simple board that takes a 6-12V input voltage and outputs a selectable 5V or 3.3V regulated voltage.
• All headers are 0.1" pitch for simple insertion into a breadboard.
• Input power can be supplied to either the DC barrel jack or the two pin header labeled + and -.
• Output power is supplied to the pins labeled GND and VCC. Board has both an On/Off switch and a voltage select switch (3.3V/5V).
• Skill Level: Assembled and Tested
